EVOLUTION Server - EVOLUTION-BMS-01-1500 - Multiprotocol (BACnet / MODBUS / KNX / DALI e64) Building Management System

The EVOLUTION BMS is a multiprotocol (BACnet / MODBUS / KNX / DALI e64) SCADA / BMS system that monitors, visualise and controls the building's mechanical and electrical equipment such as HVAC, lighting, blinds, technical alarms, hydraulics, security, power systems, etc.

It is pre-installed in a Linux operating system with many advanced modules like SQL queries, database management, advanced logic, logs, et. Including newly HTML5 optimized responsive modules like smart metering, scheduler, scenes, charts, alarms, etc. all having very intuitive graphical user interfaces. Its Visualization is one of the most customizable, multi-user/project, special user-rights, multilingual and user-friendly visualizations on the market.

Available in different industrial embedded PC versions (also available as virtual machine for end-user customized hardware and for private cluster/cloud) to match the requirements of even the most complex of installations.

Evolution is a professional BMS system and the Evolution BMS-UNLIMITED has no limits in data points. Thus, being able to control enormous and complex installations like industrial buildings, airports, hotels, etc.

But with the new pricing structure the Evolution BMS-1500 can now also fit into the budget of smaller projects. Apart from the limit in datapoints, this version does not differ from the Evolution Unlimited version. Additionally, the Evolution BMS-1500 can also be updated to the unlimited datapoints version in case it was required later, with the corresponding license extension.

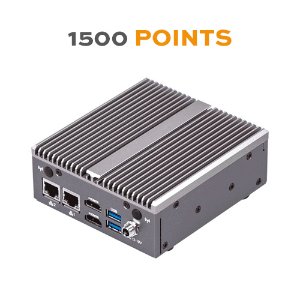

EVOLUTION BMS-1500 Server: Limited to 1500 Datapoints (all other features are equal to unlimited version): This hardware is the entry level hardware of the 3 available HW types. The main difference is the speed the data can be recorded. Suitable for small to medium size installations or even big installations where the data rate (telegrams/second) and the speed/amount of data to be logged into the database is not too high.

NEU!! Jetzt enthält Evolution BMS standardmäßig Node-RED, ein visuelles Programmierentwicklungstool für die Integration der IoT-Welt in KNX

HW details:

• Industrial PC
• Power consumption idle 5W
• Ambient conditions 0º up to +50ºC
• Cooling passive
• CPU: Intel® E3940 4 x 1.6 GHz (max. 1.8 GHz)
• Dual LAN
• Dimensions (W x D x H): 165 x 109 x 40 mm
• 4096 MB DDR3
• 256 GB Solid State Disk M.2

Included per default in all servers:
HTML visualization interface and local editor
5 x KNXnet/IP gateways
1 x DALI e64 IPAS gateways
5 x ModBus devices
1 x BACnet device
5 x Smart Metering meters
5 x Simultaneous users (Visu/Smartvisu)
1 x Additional and independent Multi-Project (Aplication Manager)*
1 x Database manager (Automatized backup and exportation of data recorded)
1 x Report Tool for individual calculation of project costs
1 x Template** - Design one page and reuse many times with different datapoints.

* Enables the configuration of an additional and independent project on the Evolution Server. Users and Visualizations can be assigned individual categories, scenes, schedules, alarms, etc. I.e. a Housing estate with 100 houses, acquire one evolution and 100 Additional Multi-Project users Licenses, controlling this way 100 houses with a single Evolution.
** Template page with virtual process points and multiple links each with different datapoints. (i.e. Hotel with 100 equal rooms. Only create one room with virtual/template process points and create floorplan with 100 links for each room. The datapoints are assigned to the link of each room)

Additional available licenses extensions:
